Long Range Wireless
Wire Replacement
Point-to-Point
Point-to-Multipoint
I/O Mirroring
Multi-Role
Edge Computing
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Digital Inputs: 1x Channel: Wet Contact Source
Current Outputs: 2x Channel: 4-20mA Current Output
Digital Outputs: 2x Channel: Sink
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 2x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

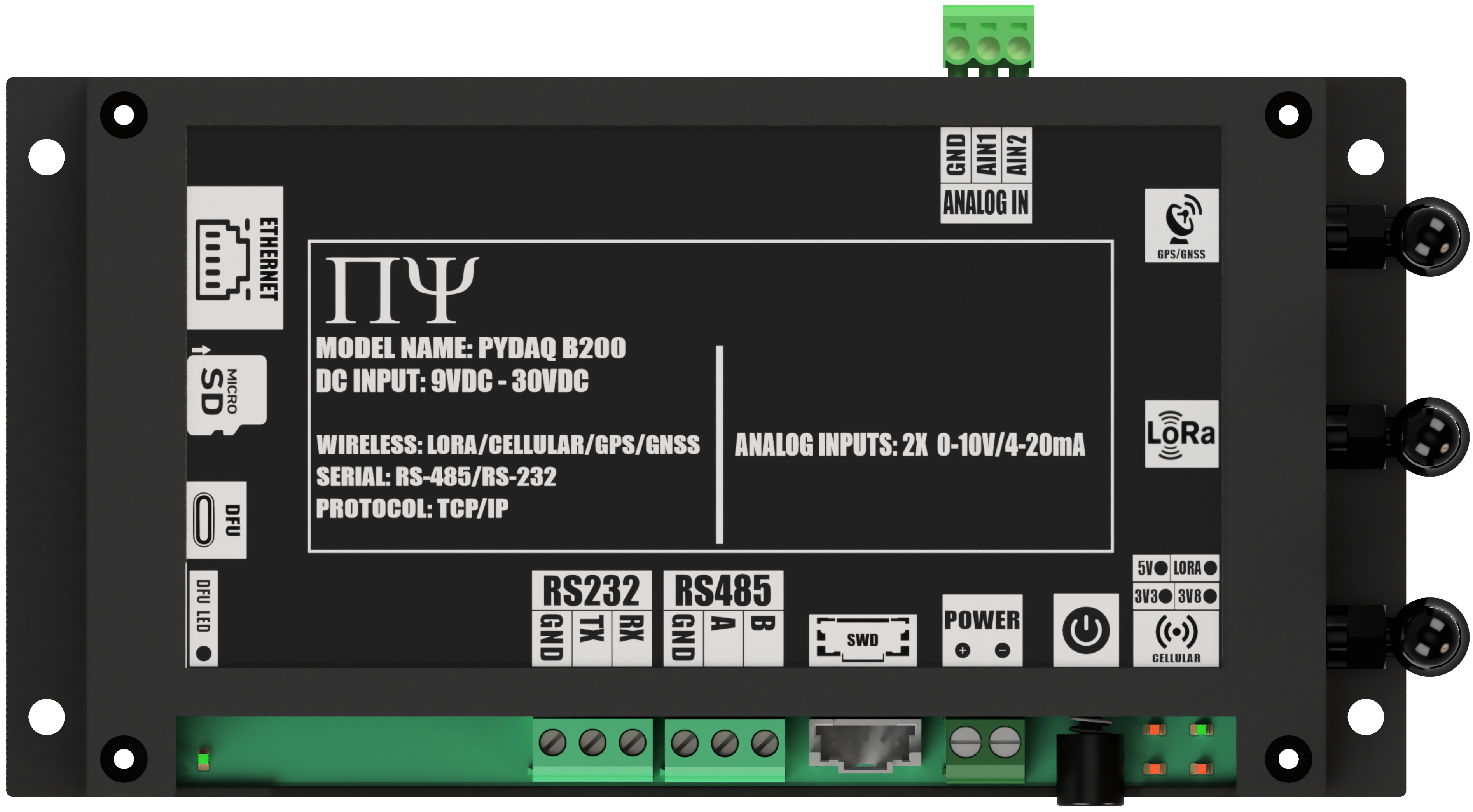

I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

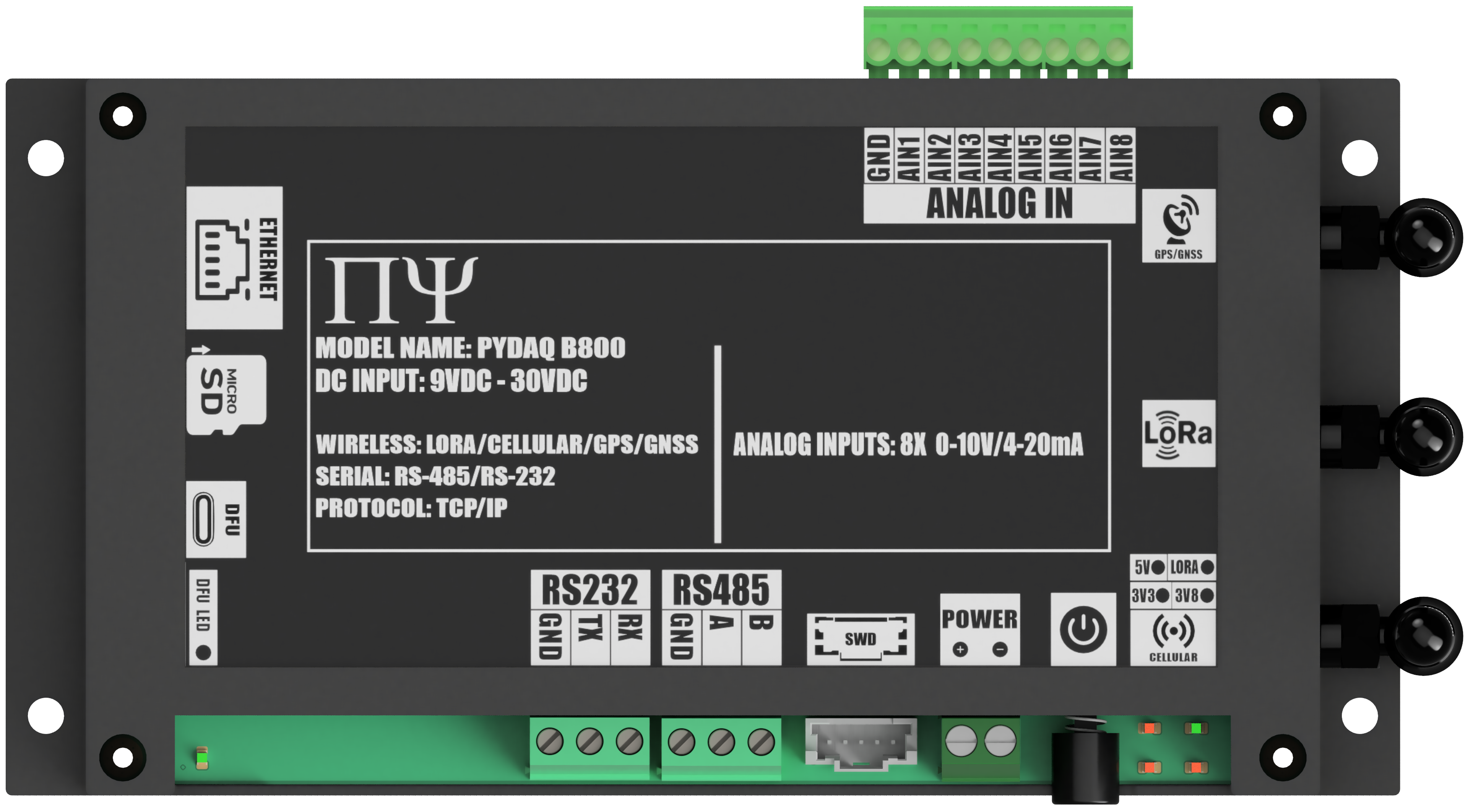

I/O Ports
Analog Inputs: 8 Channel: 0-10V, 4-20mA
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

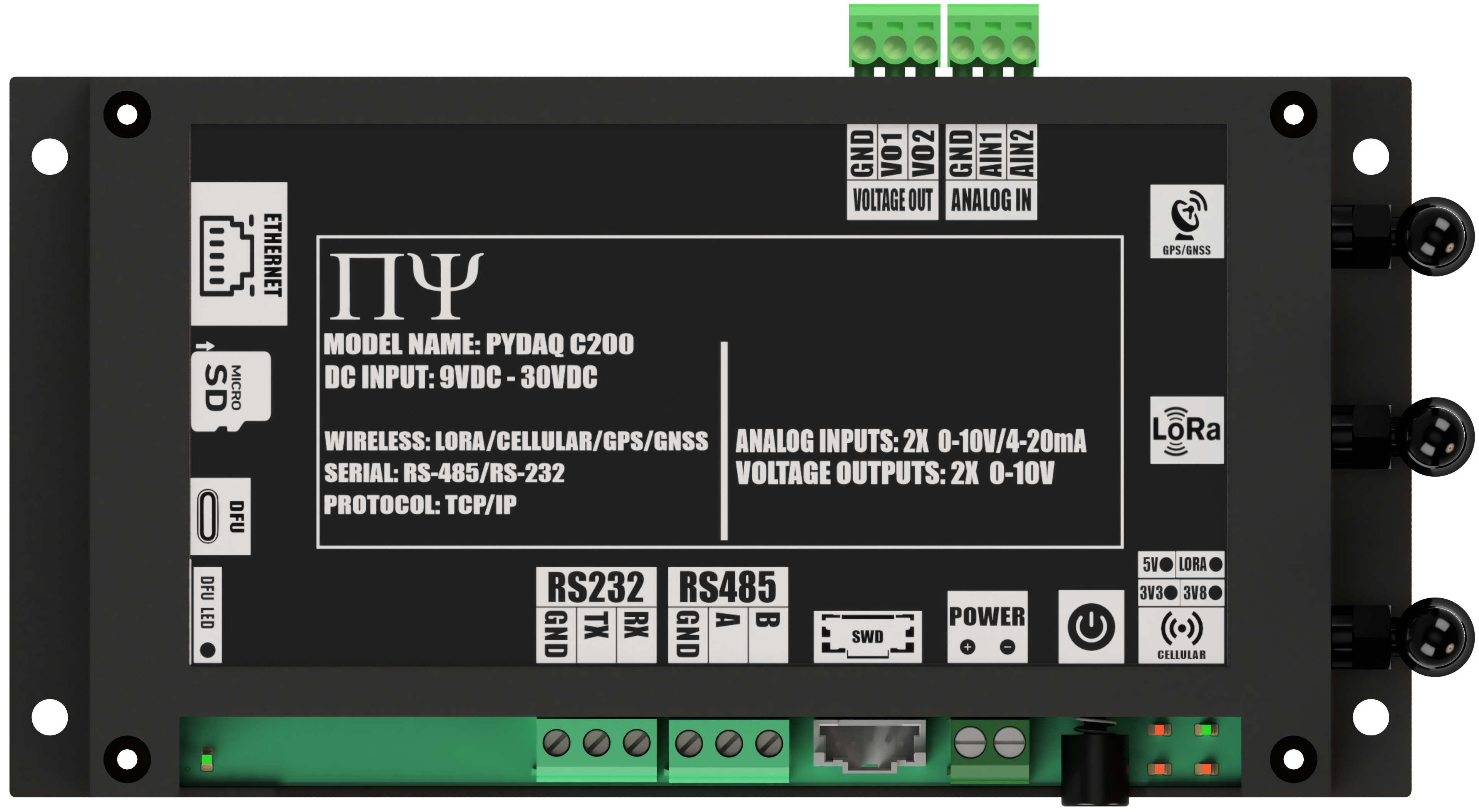

I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports

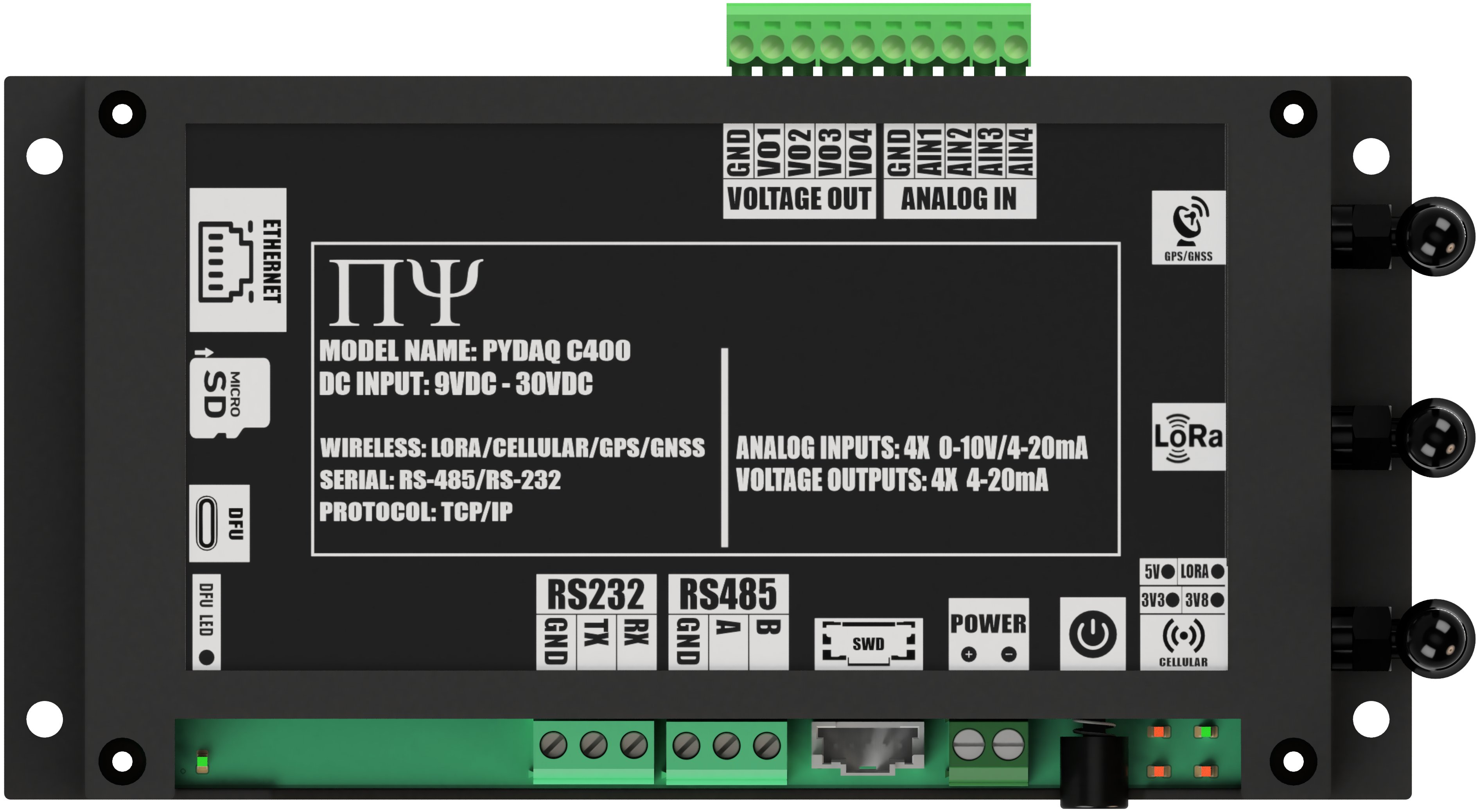

Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

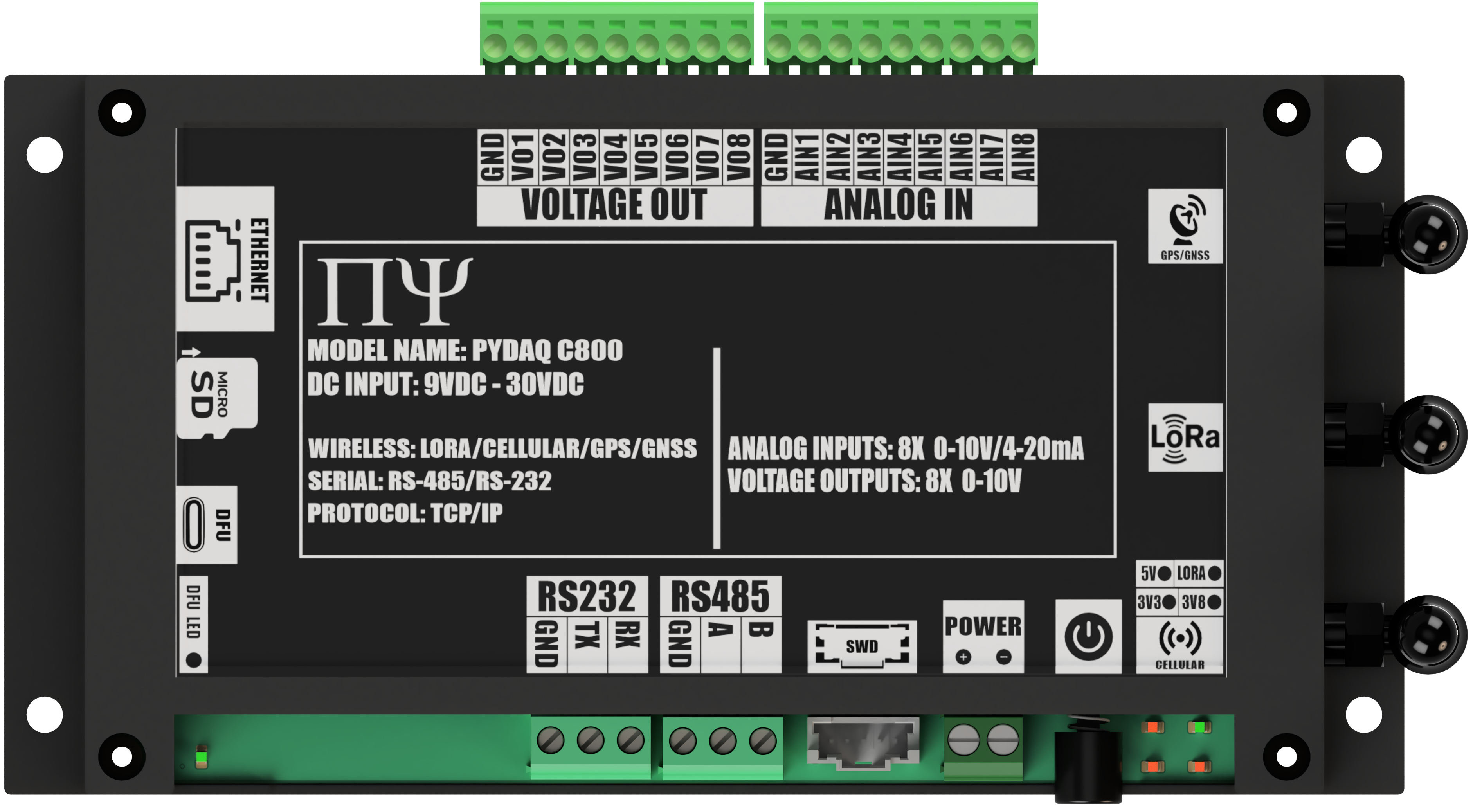

I/O Ports

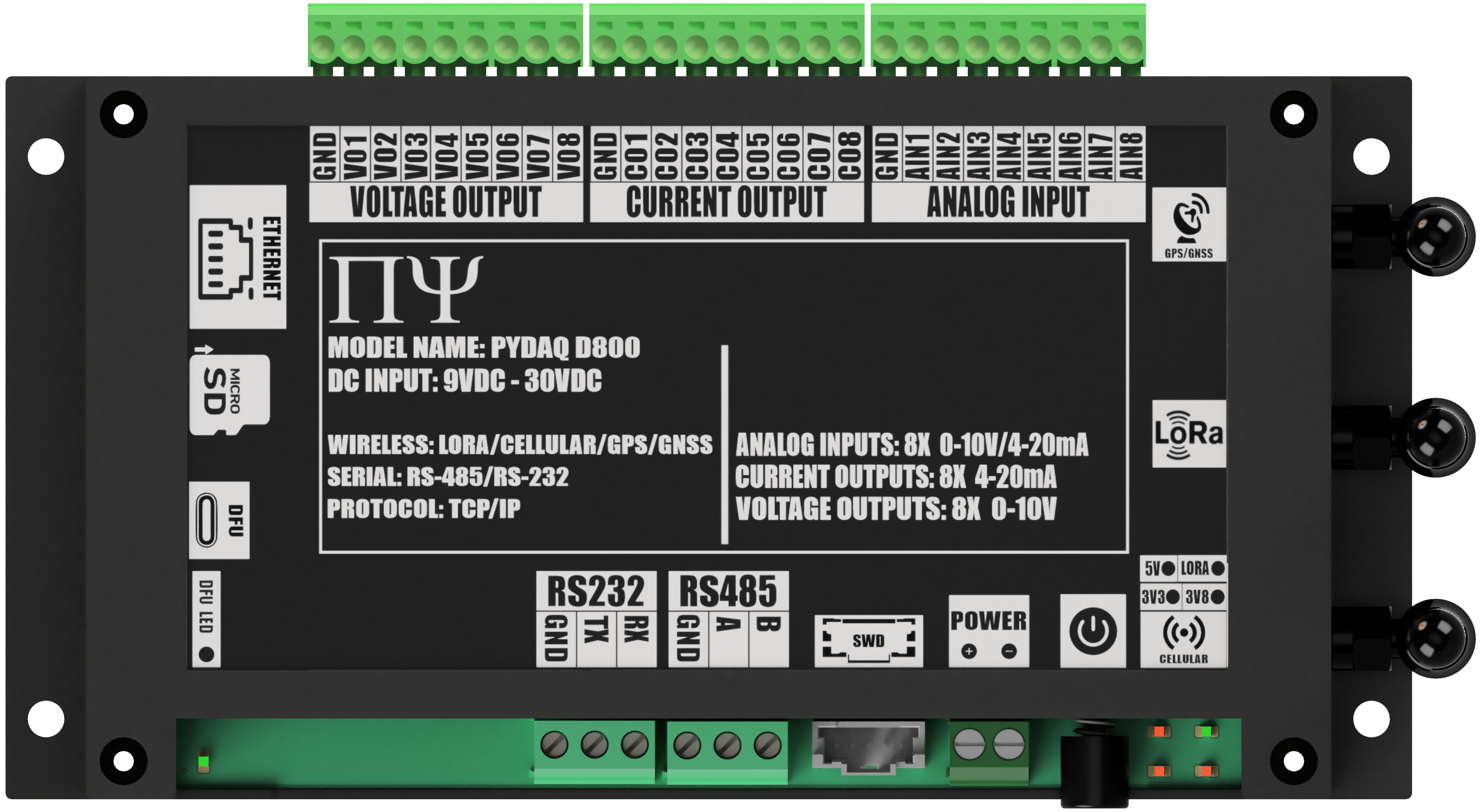

Analog Inputs: 8x Channel: 0-10V, 4-20mA
Voltage Outputs: 8x Channel: 0-10V Voltage Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

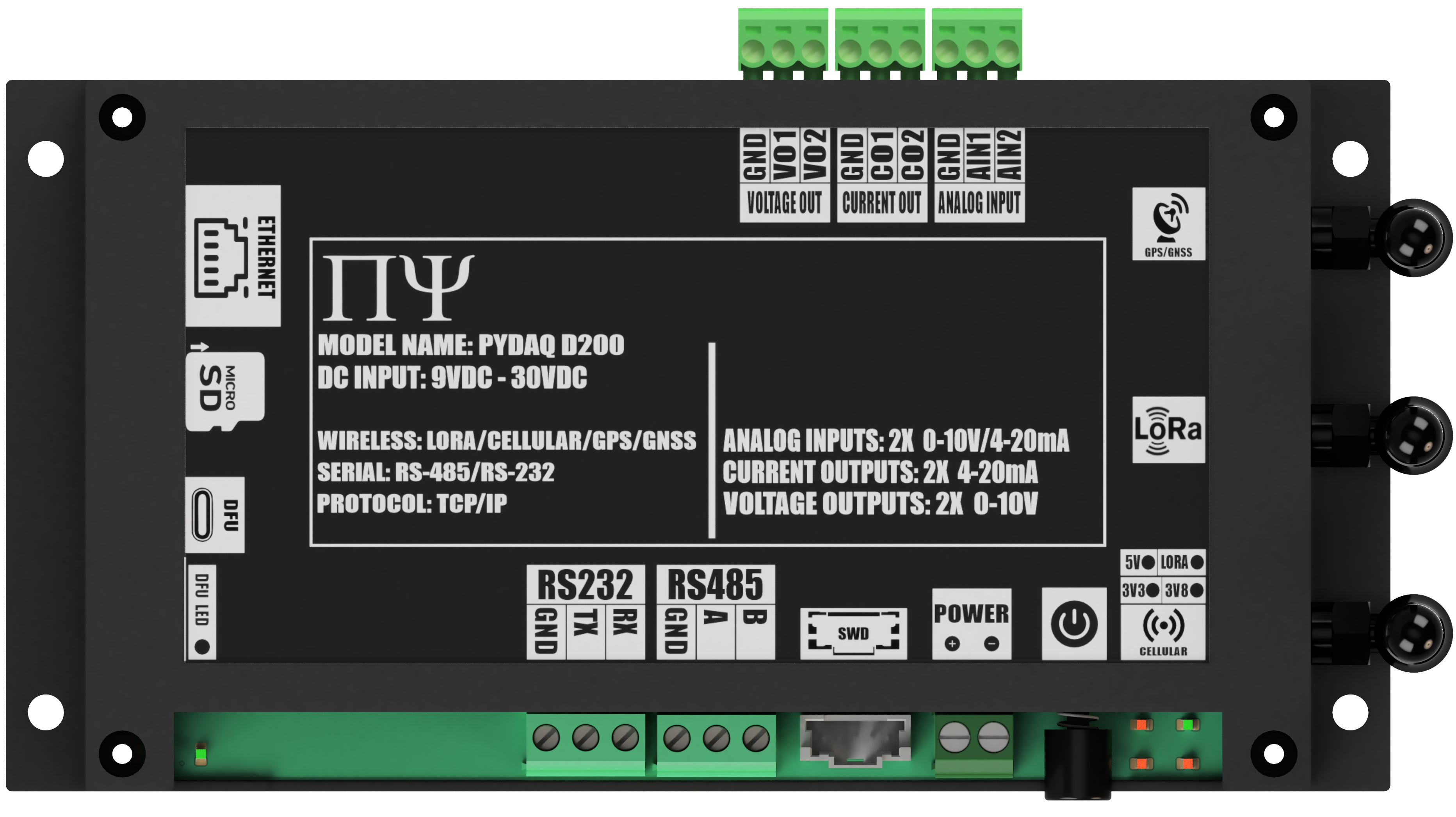

I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Current Outputs: 4x Channel: 4-20mA Current Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Voltage Outputs: 8x Channel: 0-10V Voltage Output
Current Outputs: 8x Channel: 4-20mA Current Output
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports

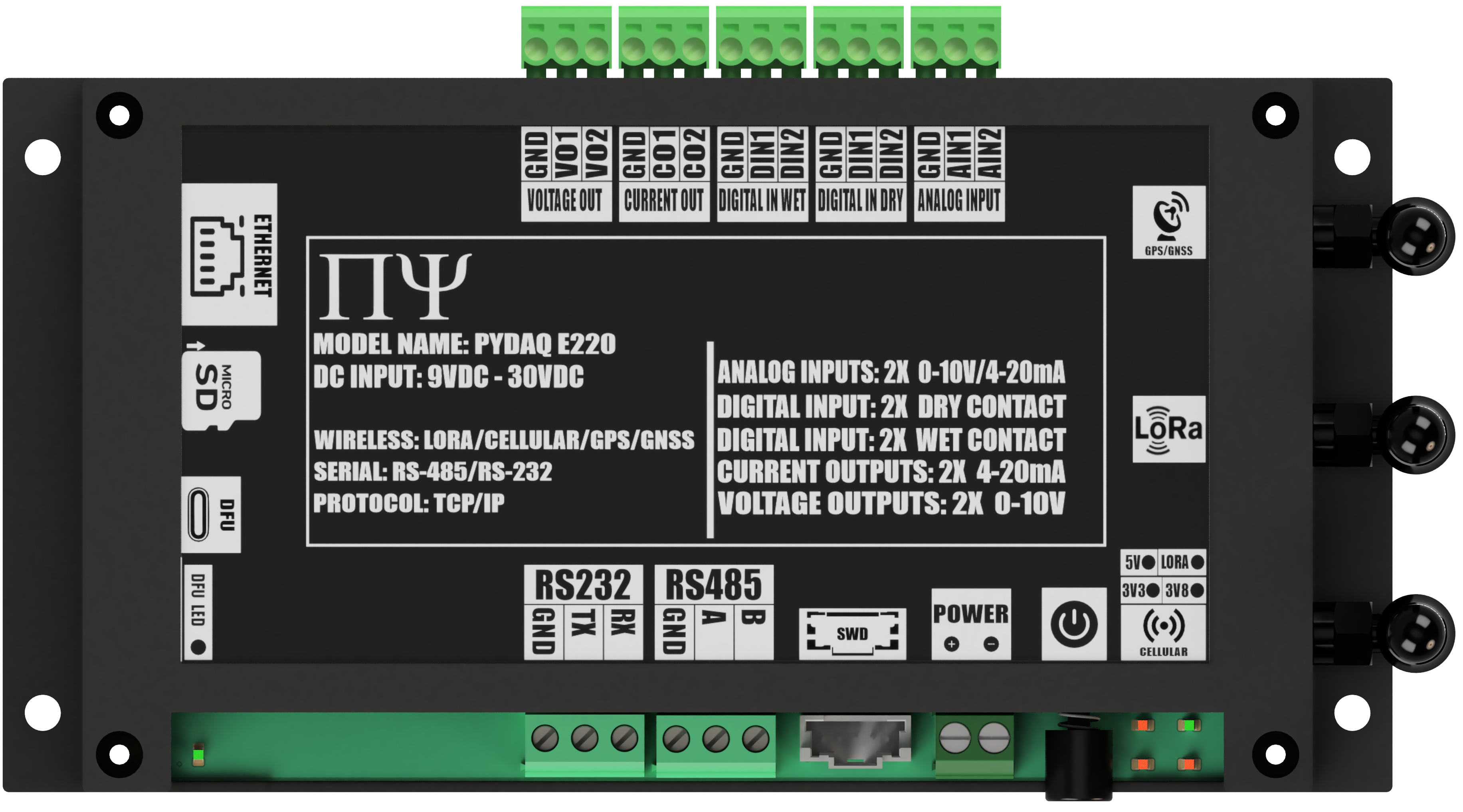

Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Output
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Output
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Inputs: 2x Channel: Wet Contact Digital Inputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports

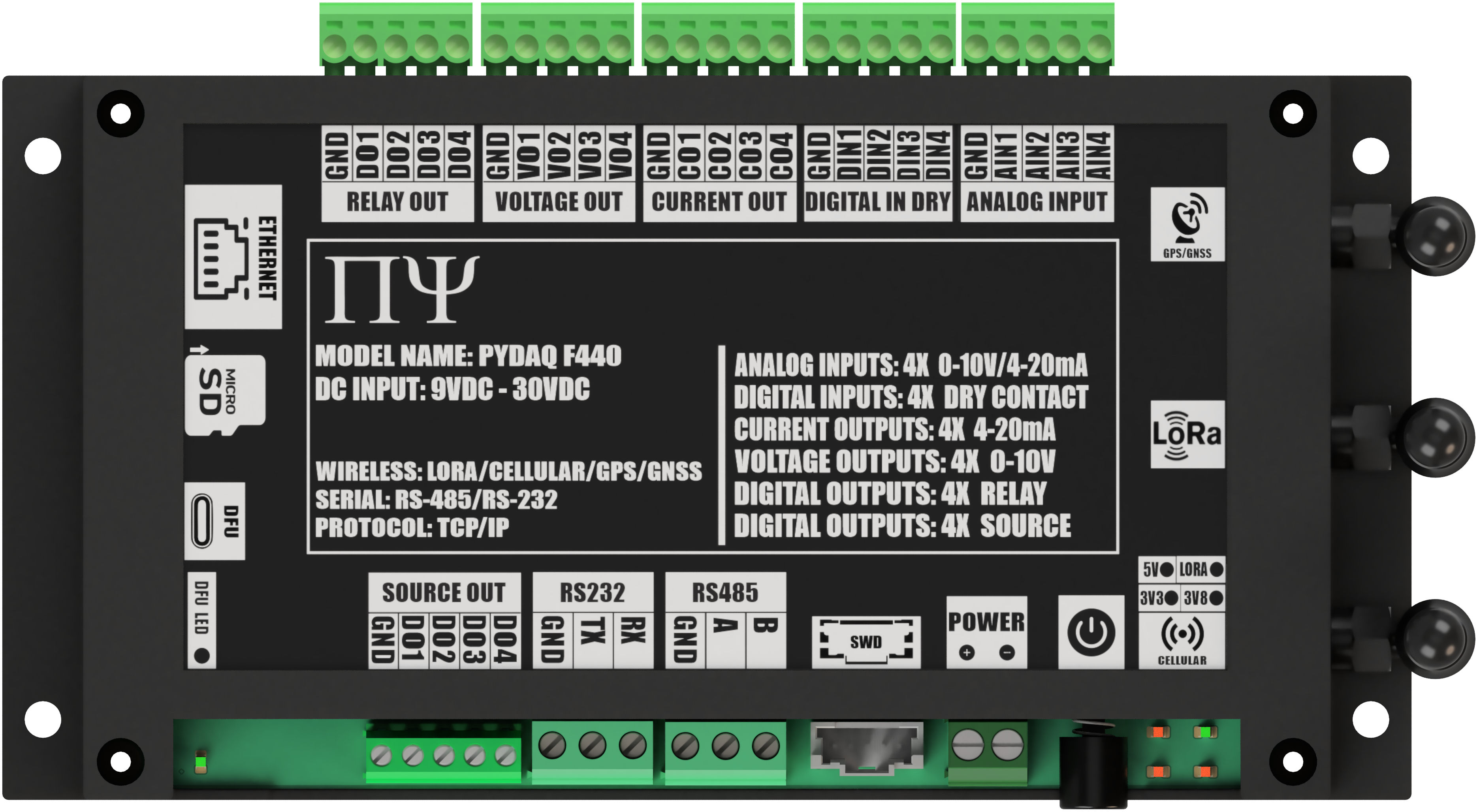

Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Current Outputs: 4x Channel: 4-20mA Current Output
Digital Inputs: 4x Channel: Dry Contact Digital Inputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Current Outputs: 4x Channel: 4-20mA Current Output
Digital Inputs: 4x Channel: Dry Contact Digital Inputs
Digital Inputs: 4x Channel: Wet Contact Digital Inputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Voltage Outputs: 8x Channel: 0-10V Voltage Output
Current Outputs: 8x Channel: 4-20mA Current Output
Digital Inputs: 8x Channel: Dry Contact Digital Inputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Analog Outputs: 8x Channel:: 0-10V/4-20mA
Digital Inputs: 8x Channel: Dry Contact Digital Inputs
Digital Inputs: 8x Channel: Wet Contact Sink/Source
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

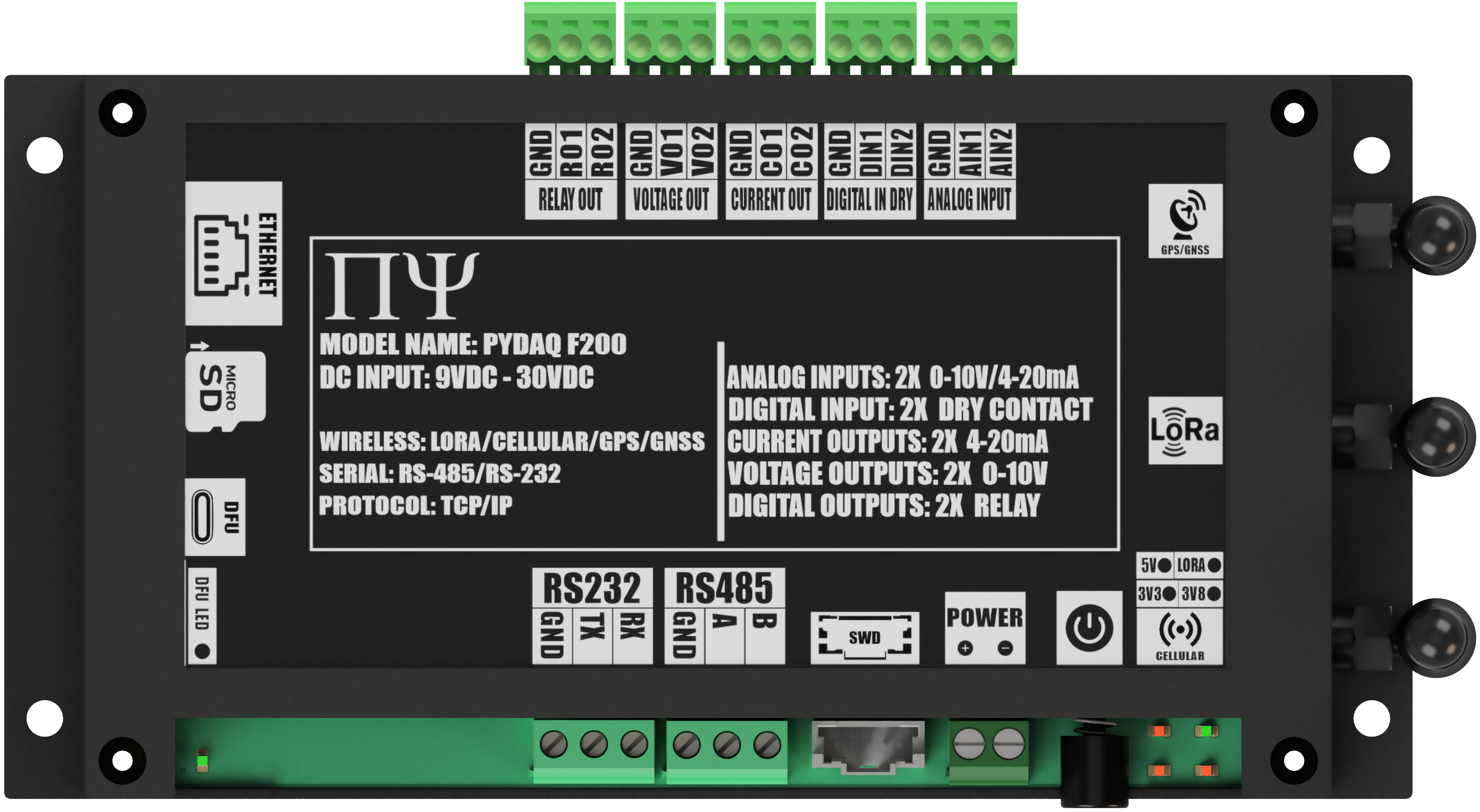

I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Output
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Outputs: 2x Channel: Relay, Form A(SPST N.O.)
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Output
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Outputs: 2x Channel: Relay Outputs
Digital Outputs: 2x Channel: Source Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

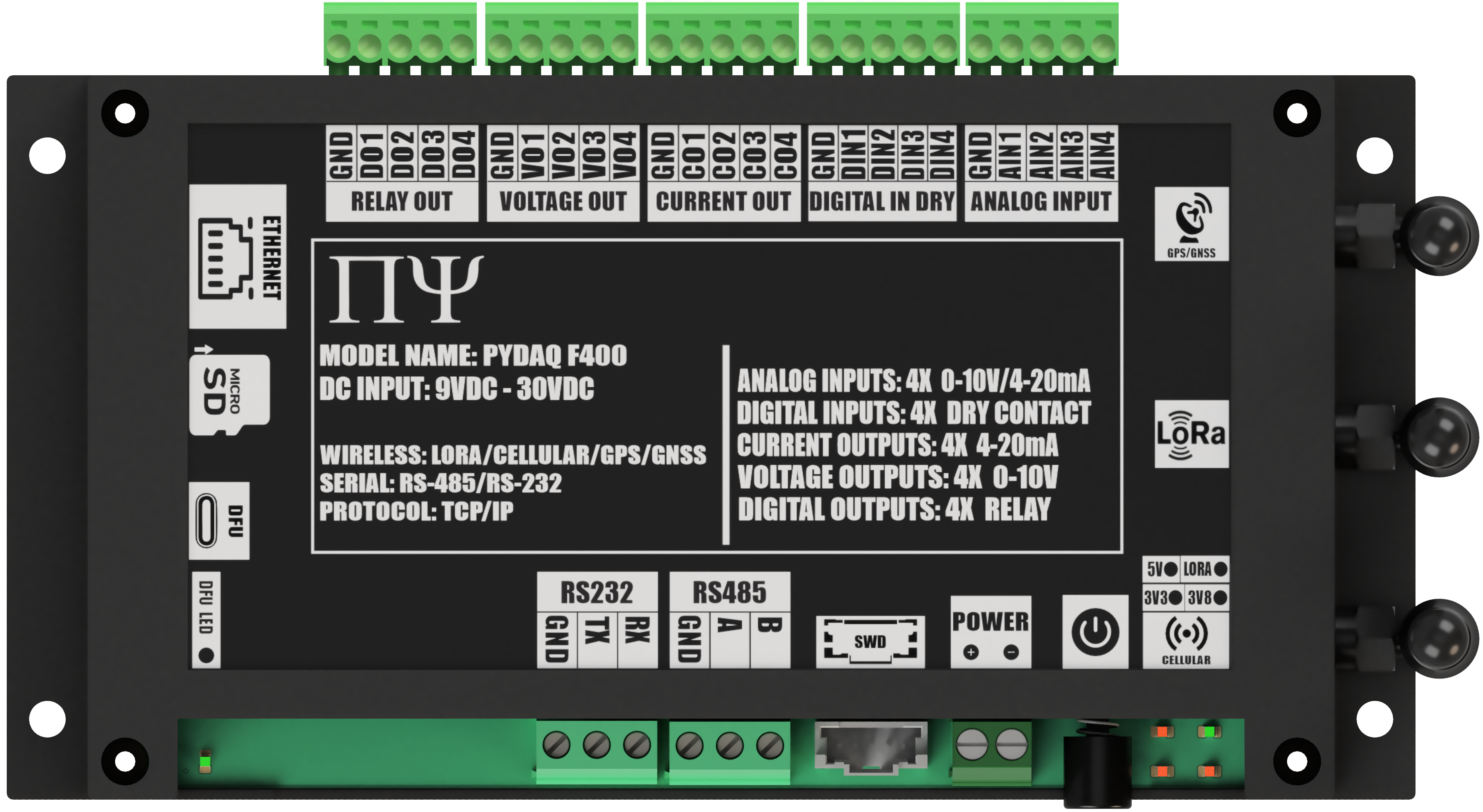

I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Current Outputs: 4x Channel: 4-20mA Current Output
Digital Inputs: 4x Channel: Dry Contact Digital Inputs
Digital Outputs: 4x Channel: Relay, Form A(SPST N.O.)
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 4x Channel: 0-10V, 4-20mA
Voltage Outputs: 4x Channel: 0-10V Voltage Output
Current Outputs: 4x Channel: 4-20mA Current Output
Digital Inputs: 4x Channel: Dry Contact Digital Inputs
Digital Outputs: 4x Channel: Relay Outputs
Digital Outputs: 4x Channel: Source Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

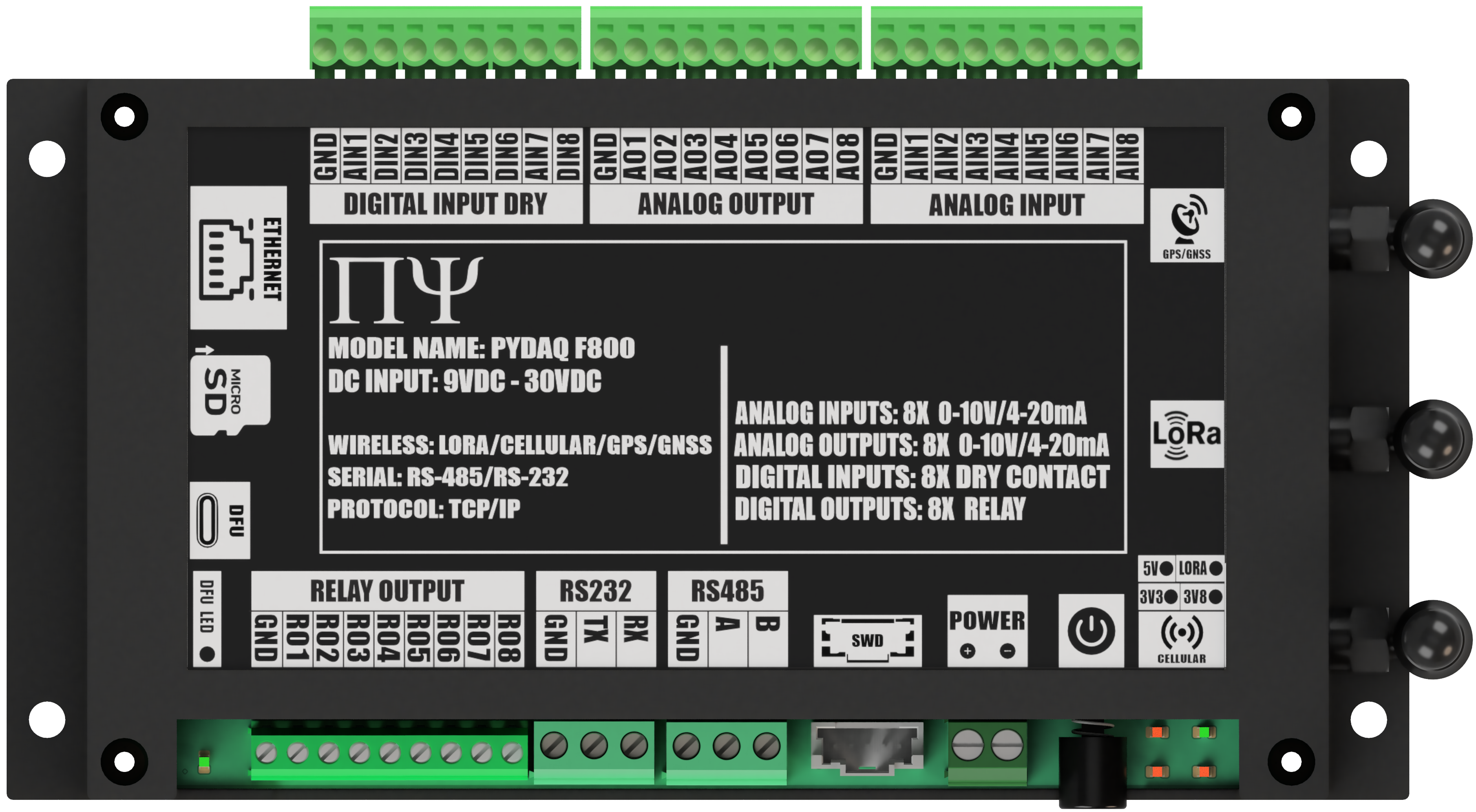

I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Analog Outputs: 8x Channel: 0-10V Voltage Output
Digital Inputs: 8x Channel: Dry Contact Digital Inputs
Digital Outputs: 8x Channel: Relay Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Analog Outputs: 8x Channel: 0-10V Voltage Output
Digital Inputs: 8x Channel: Dry Contact Digital Inputs
Digital Outputs: 8x Channel: Source Outputs
Digital Outputs: 8x Channel: Relay Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 8x Channel: 0-10V, 4-20mA
Analog Outputs: 8x Channel: 0-10V Voltage Output
Digital Inputs: 8x Channel: Dry Contact Digital Inputs
Digital Outputs: 8x Channel: Source Outputs
Digital Outputs: 8x Channel: Relay Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing

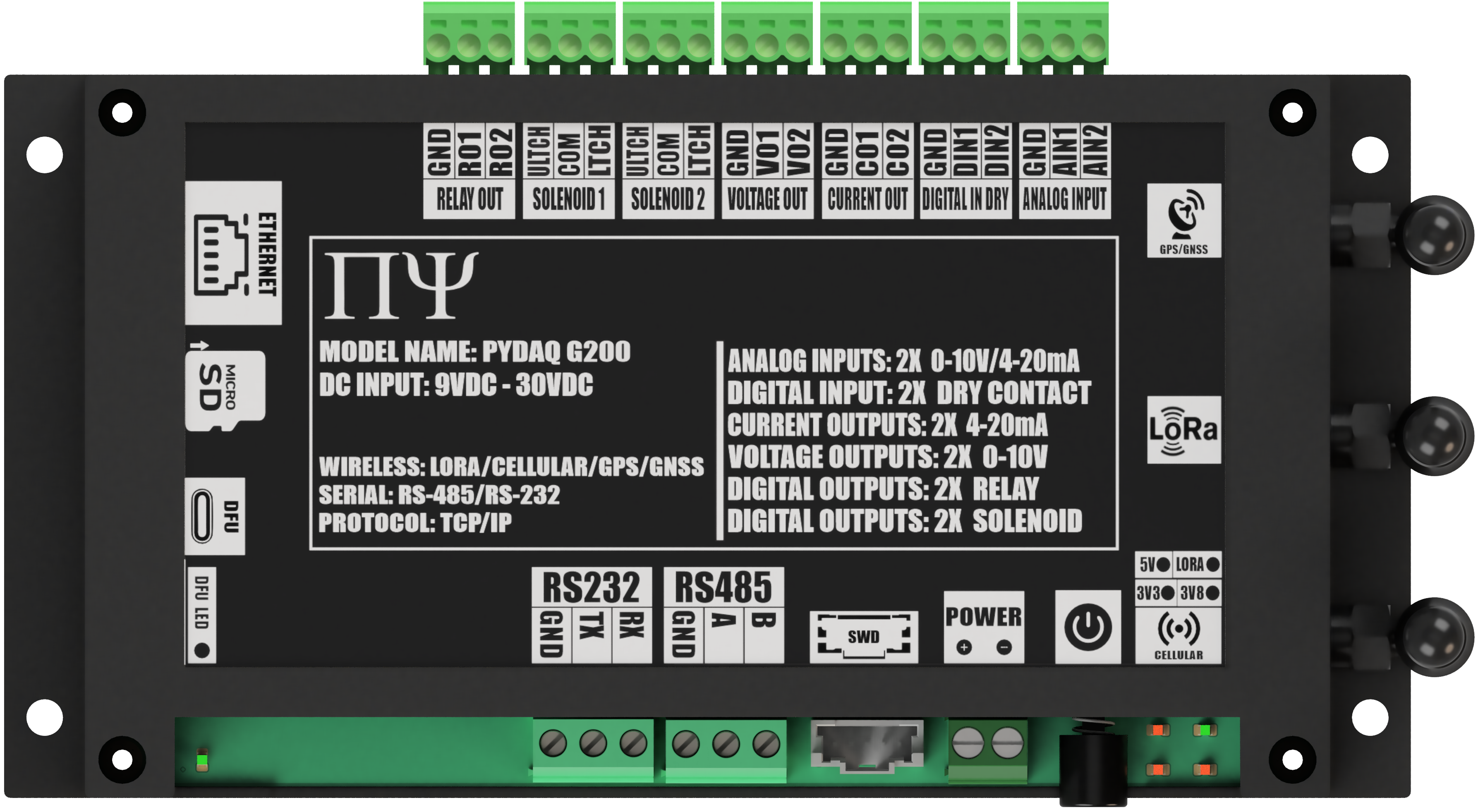

I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Outputs
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Outputs: 2x Channel: Relay Outputs
Digital Outputs: 2x Channel: Latching Solenoid
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Outputs
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Outputs: 2x Channel: Relay Outputs
Digital Outputs: 2x Channel: Latching Solenoid
Digital Outputs: 2x Channel: Source Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Outputs
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Outputs: 2x Channel: Relay Outputs
Digital Outputs: 2x Channel: Sink Solenoid
Digital Outputs: 2x Channel: Source Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
Power
Power Supply Voltage: 9-30V
Power Type: DC-in
Current Draw: 150mA@Typical 3A@Peak
Mechanical
Dimensions: 152.05" L x 87.2" W x 1.6" H
Enclosure: ABS Plastic
IP Rating: IP 64
Environment
Operating Temperature: -40°C to 85°C
Operating Humidity: 5%-95% Relative Humidity, non-condensing
I/O Ports
Analog Inputs: 2x Channel: 0-10V, 4-20mA
Digital Inputs: 2x Channel: Dry Contact Digital Inputs
Digital Inputs: 2x Channel: Wet Contact Source
Digital Inputs: 2x Channel: Discrete Counter Input
Voltage Outputs: 2x Channel: 0-10V Voltage Output
Current Outputs: 2x Channel: 4-20mA Current Outputs
Digital Outputs: 2x Channel: Relay Outputs
Digital Outputs: 2x Channel: Sink Solenoid
Digital Outputs: 2x Channel: Source Outputs
Wired Communication
RS-232: 1x Port: Modbus RTU Master/Slave
RS-485: 1x Port: Modbus RTU Master/Slave
Ethernet: 1x Port: Modbus TCP Master/Slave
Wireless Communication
Radio: 900MHz ISM Protocol: Star Topology
Cellular: LTE 4G Protocol: MQTT/HTTPS
Bluetooth: 2.4GHz ISM Protocol: BLE
Certification
FCC, IC:
From Idea to Reality: Seamlessly transition your ideas into impactful solutions. Our IoT Developer Center paves the way for rapid development, innovative creations, and success that’s within reach.
Embedded Hardware Design
Tailor Your Embedded System Hardware
Embedded Board
IoT Gateway
System on Modules
Developer Support Center
Reource Hub to Fuel the Development
Document
Third-Party Software
Tools
Carrier Board -
Developer Forum
Online Community to Engage with IoT Experts
Technical Support
Product Feedback
Latest Updates
Project Ideas
Global IoT Hardware & Solutions Supplier for
IoT Gateway Developers IoT Gateway Developers
IoT Solution Vendors
IoT Gateway End Users
PytroWell is dedicated to serving customers with full range of reliable and certified IoT products, as well as scenario-based IoT solutions. Our goal is to help our customers reduce development risks and shorten productization cycles.
Read Our Story
20,000㎡
Manufacturing
100+
R&D Engineers
3,000+
Customers served
18years
ODM Services
100+
IoT Products
50+
Nation Patents
Supply & Delivery
Professional and strong R&D team with more than 18 years of development experience, as well as the advanced production line for rapid production and agile delivery.
Cost-Effective
Provides competitively-priced products for customers with different development capabilities, helping them to reduce costs and shorten the development cycle.
Technical Community
Provides an open online forum for global developers to share technical information, collaborate on development projects, and engage in business cooperation.
Service & Support
Provides a wide range of development materials and high-quality real-time technical support to help customers accelerate the product development.
PytroWell’s IoT devices meet a wide variety of customer and partner needs. With our wireless smart products, companies can easily build their own IoT projects and applications.View all PytroWell IoT partners here
